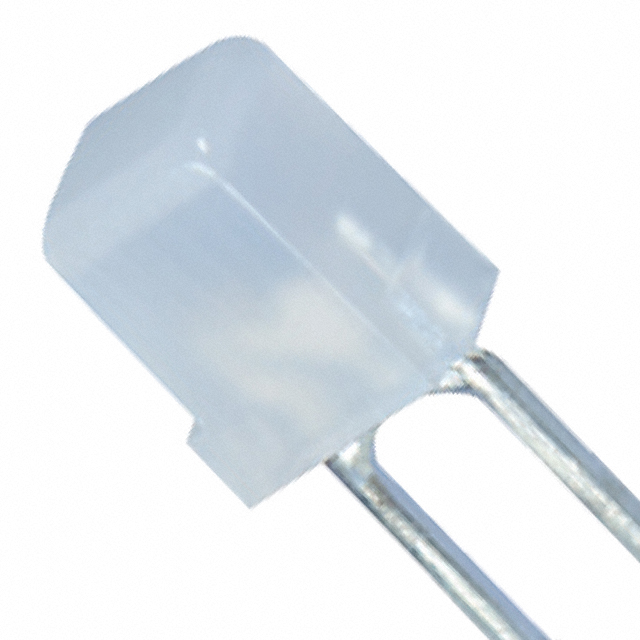

XSVG43MB
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED GREEN DIFF ICE CUBE LED T/H
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 110°
- Mounting Type: Through Hole
- Package / Case: Radial
- Color: Green
- Current - Test: 20mA
- Voltage - Forward (Vf) (Typ): 2.1V
- Grade: -
- Qualification: -
- Supplier Device Package: ICE CUBE LED
- Size / Dimension: -
- Configuration: Standard
- Lens Color: White
- Lens Transparency: Diffused
- Millicandela Rating: 19mcd
- Lens Style: Square with Flat Top
- Lens Size: 3.00mm
- Wavelength - Dominant: 570nm
- Wavelength - Peak: 574nm
- Features: -
- Height (Max): 4.80mm
-
- Datasheet: BRVN-XSVG43MB
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
