XSVG18D

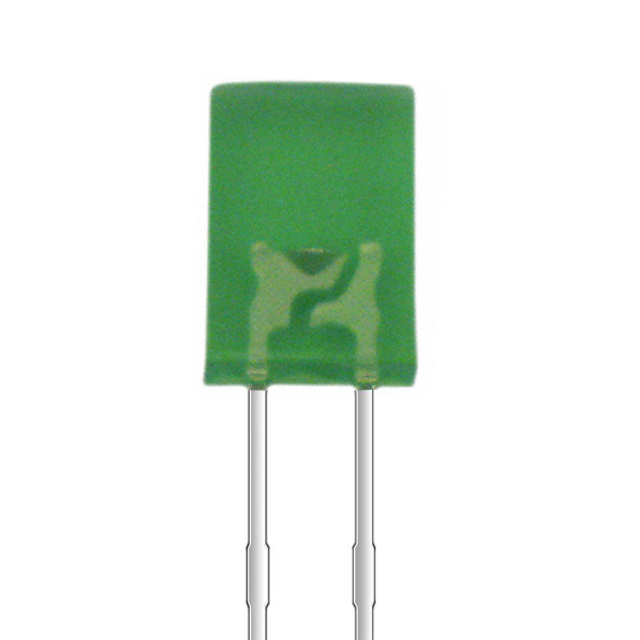

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED GREEN DIFF RECT 2.5X5MM T/H
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 110°
- Mounting Type: Through Hole
- Package / Case: Radial
- Color: Green
- Current - Test: 20mA
- Voltage - Forward (Vf) (Typ): 2.1V
- Grade: -
- Qualification: -
- Supplier Device Package: Rectangular 2mmx5mm
- Size / Dimension: 5.00mm L x 2.00mm W
- Configuration: -
- Lens Color: Green
- Lens Transparency: Diffused
- Millicandela Rating: 29mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 5.00mm x 2.00mm
- Wavelength - Dominant: 570nm
- Wavelength - Peak: 574nm
- Features: -
- Height (Max): 8.25mm
-
- Datasheet: BRVN-XSVG18D
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
