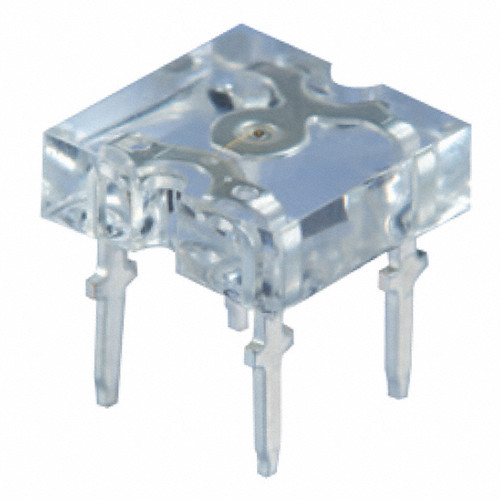

XSM2CYK383W
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED YELLOW 590NM
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Wavelength: 590nm (Typ)
- Viewing Angle: 110°
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.200", 5.08mm)
- Color: Yellow
- Current - Test: 20mA
- Voltage - Forward (Vf) (Typ): 2V
- Lumens/Watt @ Current - Test: 50 lm/W
- Current - Max: 30mA
- Supplier Device Package: -
- Size / Dimension: 0.299" L x 0.299" W (7.60mm x 7.60mm)
- Height - Seated (Max): 0.178" (4.53mm)
- Temperature - Test: 25°C
- Luminous Flux @ Current/Temperature: 2lm (Typ)
-
- Datasheet: BRVN-XSM2CYK383W
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
