XPZ3LUYG37M

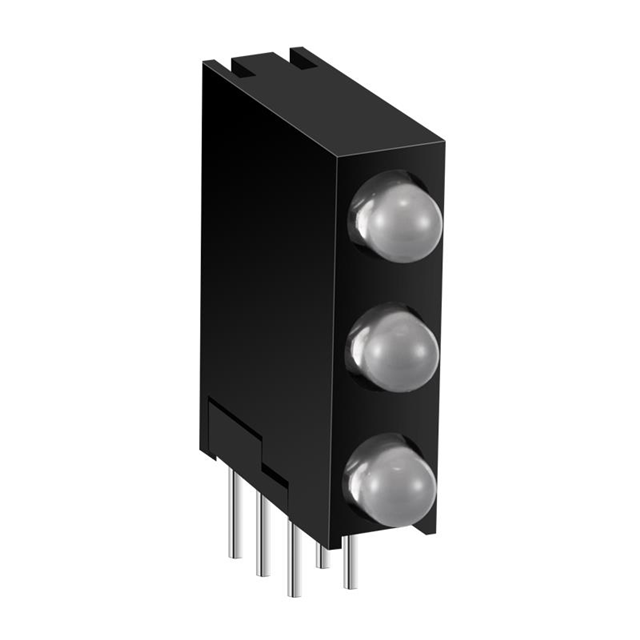

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED CBI 2.9MM TRI GRN/YELLOW RA
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 60°
- Mounting Type: Through Hole, Right Angle
- Color: Green, Yellow
- Configuration: 3 Wide
- Millicandela Rating: 13mcd Green, 7mcd Yellow
- Lens Style: Round with Domed Top
- Lens Size: 2.90mm Dia
- Wavelength - Peak: 565nm Green, 590nm Yellow
- Lens Type: Diffused, White
- Current: 20mA Green, 20mA Yellow
- Voltage Rating: 2.2V Green, 2.1V Yellow
-
- Datasheet: BRVN-XPZ3LUYG37M
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
