XPJ1CMDKVG41M

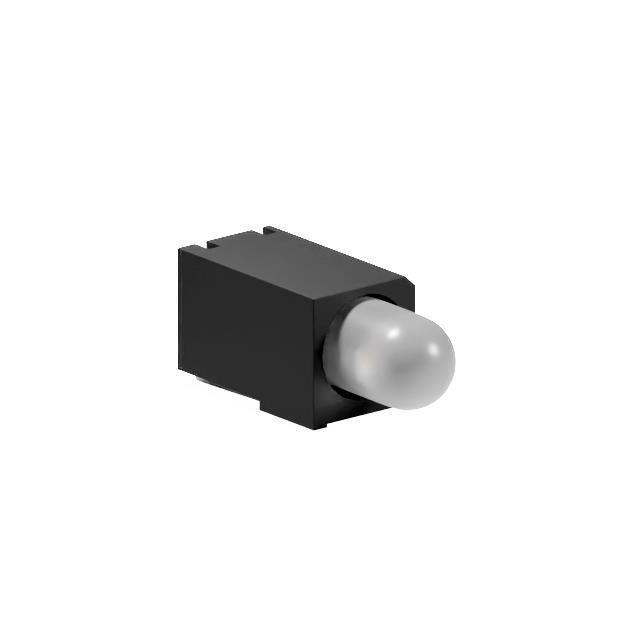

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 3.4MM LC R/G BI-COLOR RT. ANG. S
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 70°
- Mounting Type: Surface Mount, Right Angle
- Color: Green, Red
- Configuration: Single
- Millicandela Rating: 5mcd Green, 49mcd Red
- Lens Style: Round with Domed Top
- Lens Size: 3.40mm Dia
- Wavelength - Peak: 574nm Green, 645nm Red
- Lens Type: Diffused, White
- Current: 2mA Green, 2mA Red
- Voltage Rating: 1.9V Green, 1.75V Red
-
- Datasheet: BRVN-XPJ1CMDKVG41M
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
