XNN1LUGR86M

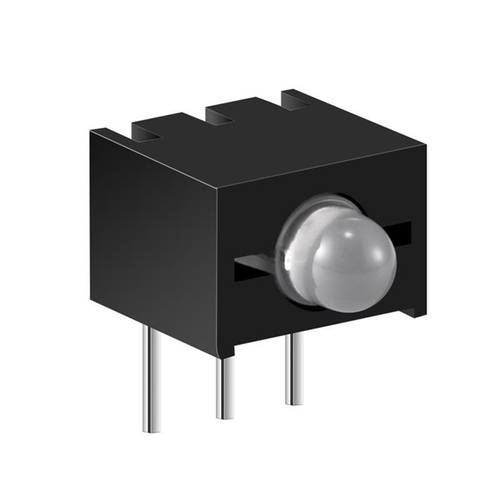

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED CBI 3MM GRN/RED RA
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 60°
- Mounting Type: Through Hole, Right Angle
- Color: Green, Red
- Configuration: Single
- Millicandela Rating: 29mcd Green, 23mcd Red
- Lens Style: Round with Domed Top
- Lens Size: 3mm, T-1
- Wavelength - Peak: 565nm, 627nm
- Lens Type: Diffused, White
- Current: 140mA Green, 160mA Red
- Voltage Rating: 2.2V Green, 2V Red
-
- Datasheet: BRVN-XNN1LUGR86M
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
