XLUY13D

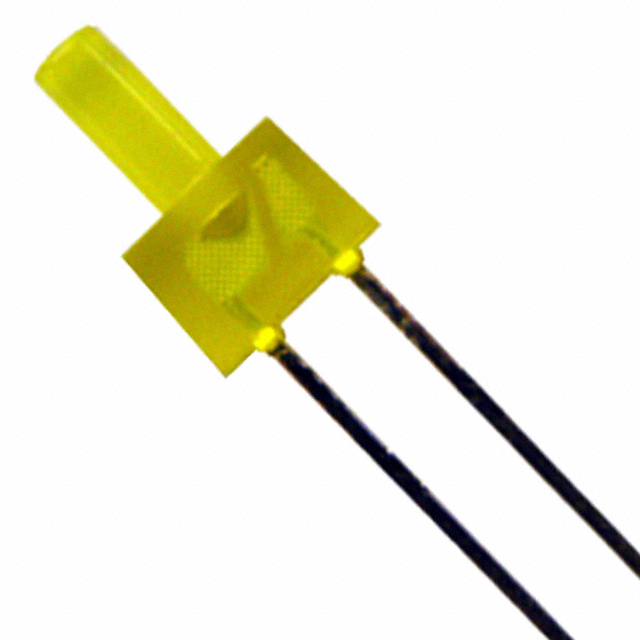

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED YL DIFFUSED FLAT TOP LED T/H
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 70°
- Mounting Type: Through Hole
- Package / Case: Radial
- Color: Yellow
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 1.95V
- Grade: -
- Qualification: -
- Supplier Device Package: Flat Top LED
- Size / Dimension: -
- Configuration: Standard
- Lens Color: Yellow
- Lens Transparency: Diffused
- Millicandela Rating: 7mcd
- Lens Style: Round with Flat Top
- Lens Size: 2.00mm Dia
- Wavelength - Dominant: 588nm
- Wavelength - Peak: 590nm
- Features: -
- Height (Max): 8.00mm
-
- Datasheet: BRVN-XLUY13D
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
