XLUGR59MCA

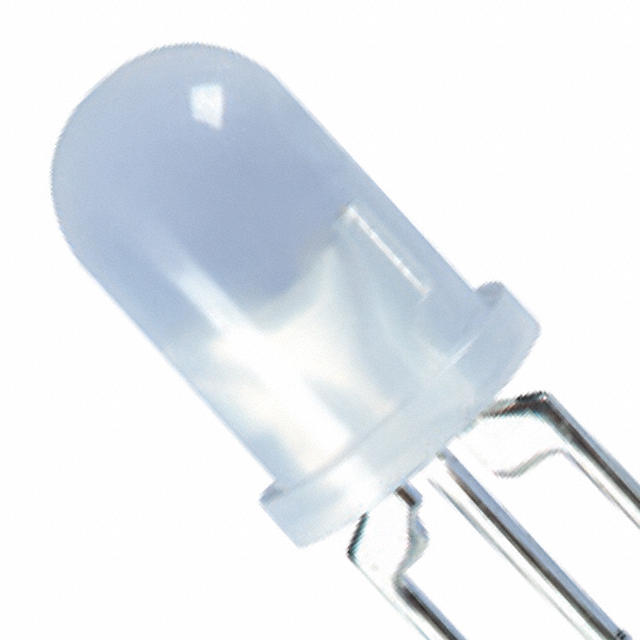

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 5MM BI-COLOR G/R LED
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Viewing Angle: 60°
- Mounting Type: Through Hole
- Package / Case: Radial - 3 Leads
- Color: Green, Red
- Current - Test: 20mA Green, 20mA Red
- Voltage - Forward (Vf) (Typ): 2.2V Green, 2V Red
- Grade: -
- Qualification: -
- Supplier Device Package: T-1 3/4 (5mm)
- Size / Dimension: -
- Configuration: Common Anode
- Lens Color: White
- Lens Transparency: Diffused
- Millicandela Rating: 4.8mcd Green, 4.8mcd Red
- Lens Style: Round with Domed Top
- Lens Size: 5mm, T-1 3/4
- Wavelength - Dominant: 568nm Green, 625nm Red
- Wavelength - Peak: 565nm Green, 627nm Red
- Features: -
- Height (Max): 9.85mm
-
- Datasheet: BRVN-XLUGR59MCA
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
