XDVG57A

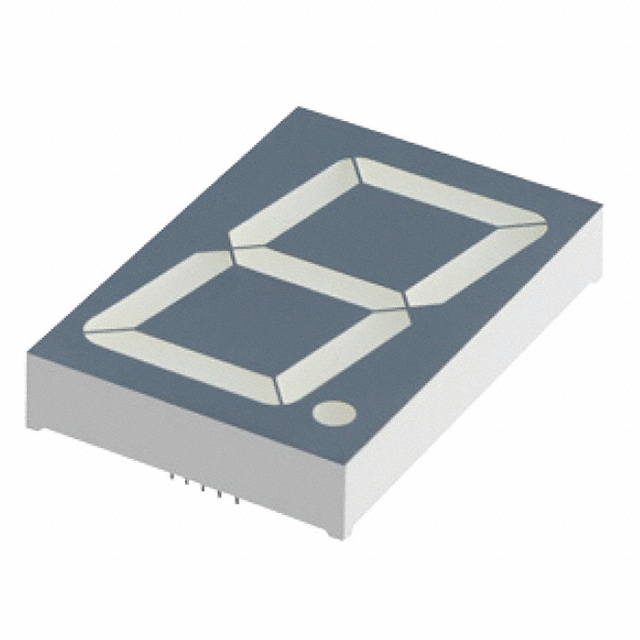

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 2.3" SGL GRN 10DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-DIP (2.367", 60.10mm)
- Color: Green
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 8V
- Size / Dimension: 2.756" H x 1.890" W x 0.472" D (70.00mm x 48.00mm x 12.00mm)
- Millicandela Rating: 62mcd
- Wavelength - Peak: 574nm
- Number of Characters: 1
- Digit/Alpha Size: 2.30" (58.42mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Power Dissipation (Max): 150mW
- Display Format: -
-
- Datasheet: BRVN-XDVG57A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
