XDVG25C
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-

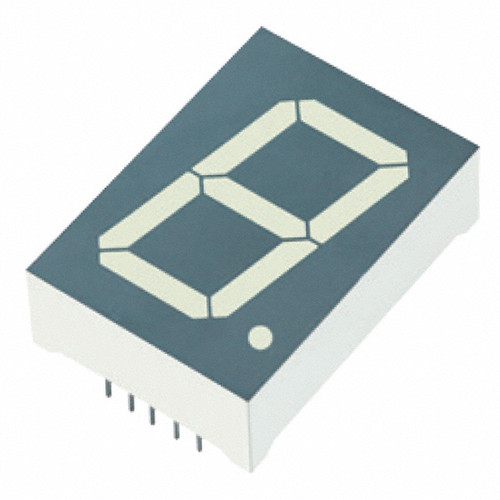

- Description: DISPLAY 7-SEG 1" SGL GREEN 10DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-DIP (1.197", 30.40mm)
- Color: Green
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 4V
- Size / Dimension: 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm)
- Millicandela Rating: 33mcd
- Wavelength - Peak: 574nm
- Number of Characters: 1
- Digit/Alpha Size: 1.00" (25.40mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XDVG25C
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
