XDVG20C-1

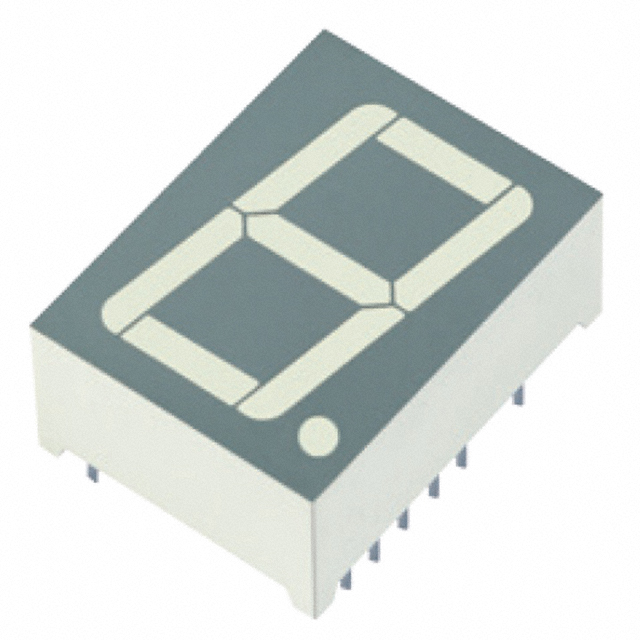

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 0.8" SGL GRN 16DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 16-DIP (0.600", 15.24mm), 13 Leads
- Color: Green
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 2V
- Size / Dimension: 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm)
- Millicandela Rating: 9mcd
- Wavelength - Peak: 574nm
- Number of Characters: 1
- Digit/Alpha Size: 0.80" (20.32mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XDVG20C-1
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
