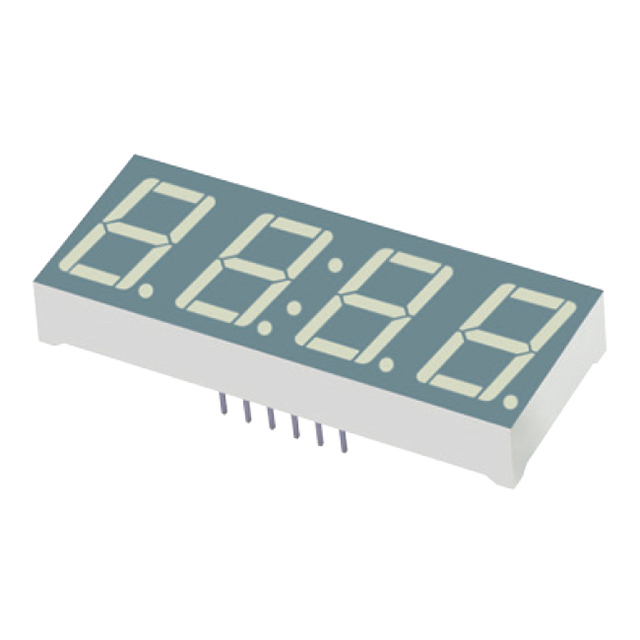

XDUY14A4-A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISP 7SEG 0.56" QUAD YLW 12DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 12-DIP (0.600", 15.24mm)
- Color: Yellow
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 1.95V
- Size / Dimension: 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm)
- Millicandela Rating: 2mcd
- Wavelength - Peak: 590nm
- Number of Characters: 4
- Digit/Alpha Size: 0.56" (14.22mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XDUY14A4-A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
