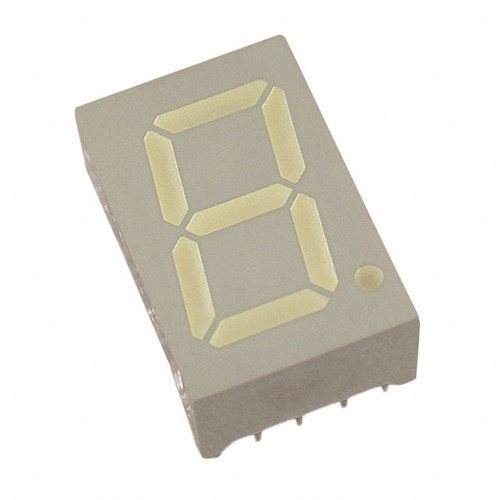

XDUY14A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 0.56" SGL YLW 10DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-DIP (0.600", 15.24mm)
- Color: Yellow
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 1.95V
- Size / Dimension: 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm)
- Millicandela Rating: 6.5mcd
- Wavelength - Peak: 590nm
- Number of Characters: 1
- Digit/Alpha Size: 0.56" (14.22mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XDUY14A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
