XDUG09C3

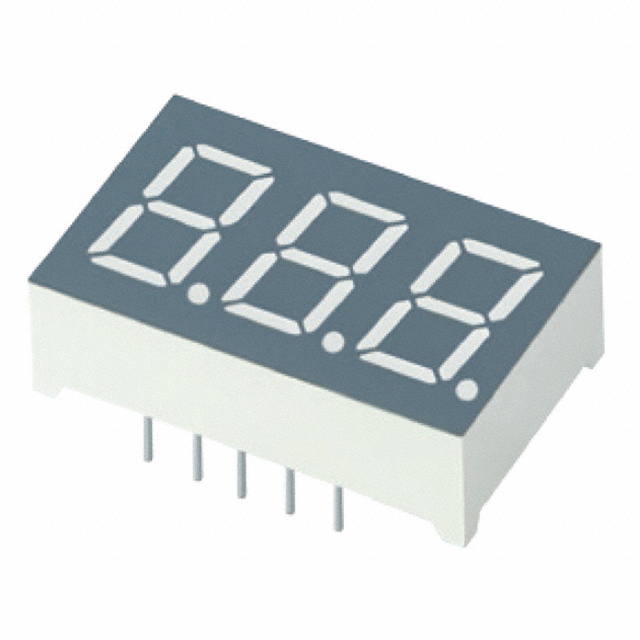

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 0.36" TRP GRN 12DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 12-DIP (0.400", 10.16mm), 11 Leads
- Color: Green
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 2V
- Size / Dimension: 0.886" H x 0.551" W x 0.283" D (22.50mm x 14.00mm x 7.20mm)
- Millicandela Rating: 2mcd
- Wavelength - Peak: 565nm
- Number of Characters: 3
- Digit/Alpha Size: 0.36" (9.14mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 62.5mW
- Display Format: -
-
- Datasheet: BRVN-XDUG09C3
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
