XDMYK46C

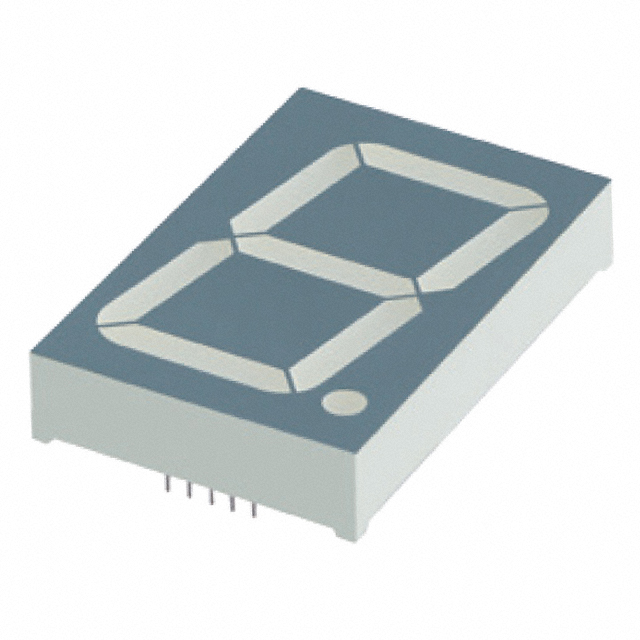

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 1.75" SGL YLW 10DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-DIP (1.900", 48.26mm)
- Color: Yellow
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 5.85V
- Size / Dimension: 2.205" H x 1.496" W x 0.433" D (56.00mm x 38.00mm x 11.00mm)
- Millicandela Rating: 190mcd
- Wavelength - Peak: 590nm
- Number of Characters: 1
- Digit/Alpha Size: 1.75" (44.50mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XDMYK46C
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
