XDMR06A

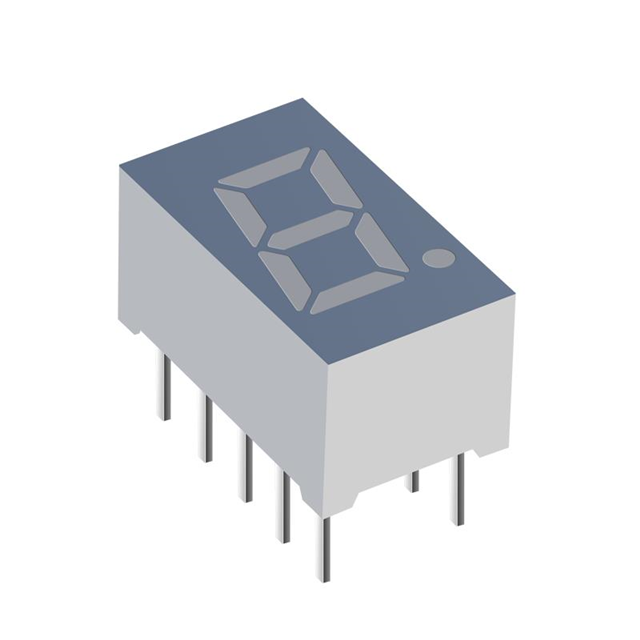

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 0.32" SGL RED 10DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Obsolete
- Package / Case: 10-DIP (0.200", 5.08mm)
- Color: Red
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 1.8V
- Size / Dimension: 0.512" H x 0.295" W x 0.256" D (13.00mm x 7.50mm x 6.50mm)
- Millicandela Rating: 8mcd
- Wavelength - Peak: 655nm
- Number of Characters: 1
- Digit/Alpha Size: 0.32" (8.00mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Power Dissipation (Max): 75mW
- Display Format: -
-
- Datasheet: BRVN-XDMR06A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
