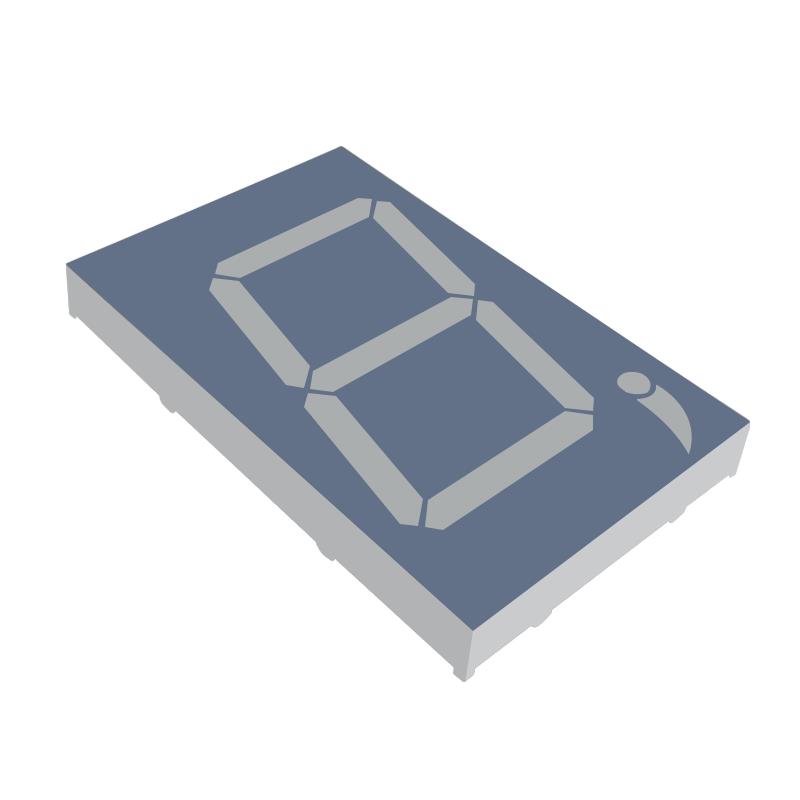

XDMDK76A-A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 3" RED LED DISPLAY
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-DIP (3.150", 80.00mm)
- Color: Red
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 11.1V
- Size / Dimension: 4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm)
- Millicandela Rating: 329.99mcd
- Wavelength - Peak: 650nm
- Number of Characters: 1
- Digit/Alpha Size: 2.99" (76.00mm)
- Display Type: 7-Segment
- Common Pin: Common Anode
- Power Dissipation (Max): 450mW
- Display Format: -
-
- Datasheet: BRVN-XDMDK76A-A
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
