XDMDK100C

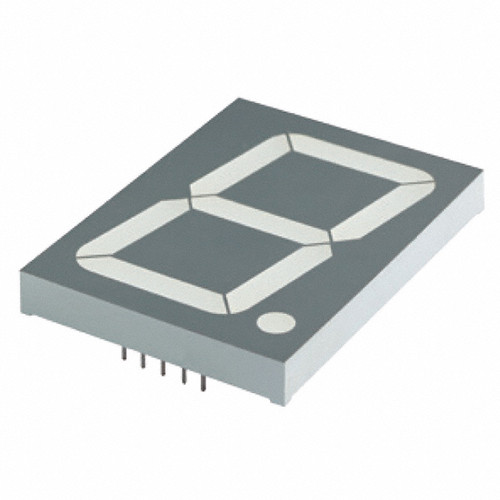

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DISPLAY 7SEG 3.98" SGL RED 10DIP
- Manufacturer: SunLED
- Length: 0 mm
- Product Status: Active
- Package / Case: 10-DIP (4.210", 107.00mm)
- Color: Red
- Current - Test: 10mA
- Voltage - Forward (Vf) (Typ): 7.4V
- Size / Dimension: 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm)
- Millicandela Rating: 74mcd
- Wavelength - Peak: 645nm
- Number of Characters: 1
- Digit/Alpha Size: 3.98" (101.20mm)
- Display Type: 7-Segment
- Common Pin: Common Cathode
- Power Dissipation (Max): 150mW
- Display Format: -
-
- Datasheet: BRVN-XDMDK100C
-
- RoHS: ROHS3 Compliant
- ECCN: EAR99
- HTSUS: 8541.41.0000
