US1G_R1_00001

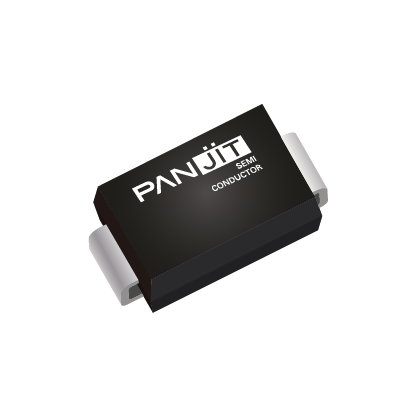

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: DIODE GEN PURP 400V 1A SMA
- Manufacturer: PANJIT
- Length: 0 mm
- Series: USM-10AH
- Product Status: Active
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA (DO-214AC)
- Current - Reverse Leakage @ Vr: 1 µA @ 400 V
- Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 1 A
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 400 V
- Current - Average Rectified (Io): 1A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 50 ns
- Capacitance @ Vr, F: 17pF @ 4V, 1MHz
- Operating Temperature - Junction: -55°C ~ 150°C
-
- Datasheet: BRVN-US1G_R1_00001
-
- ECCN: EAR99
- HTSUS: 8541109000
