TXG-750MA

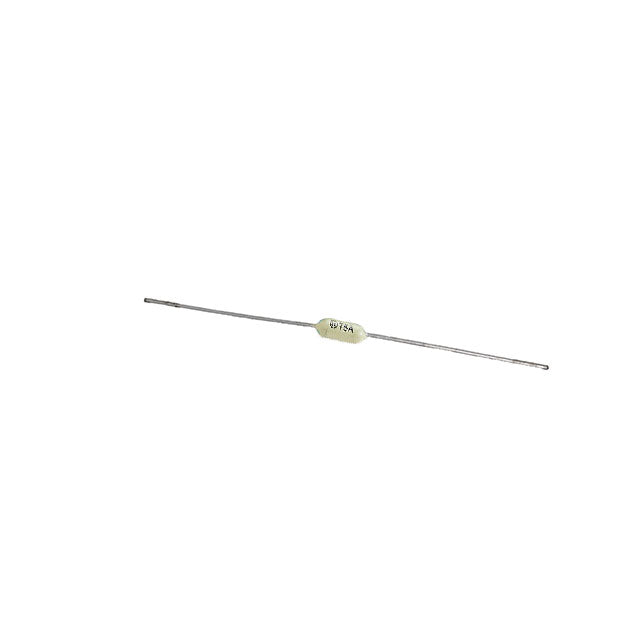

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bulk
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $1.86 | $1.86 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: THRU HOLE 2.7X7.3MM, SLOW 750MA
- Manufacturer: OptiFuse
- Length: 0 mm
- Series: TXG
- Product Status: Active
- Voltage Rating - AC: 250 V
- Current Rating (Amps): 750 mA
- Approval Agency: CSA, cURus
- Package / Case: Axial
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Size / Dimension: 0.110" Dia x 0.290" L (2.80mm x 7.37mm)
- Fuse Type: Board Mount (Cartridge Style Excluded)
- Voltage Rating - DC: -
- Response Time: Slow Blow
- Breaking Capacity @ Rated Voltage: 30A
- Melting I²t: 0.7074
- Color: -
-
- Datasheet: BRVN-TXG-750MA
