SW-R-K1-A

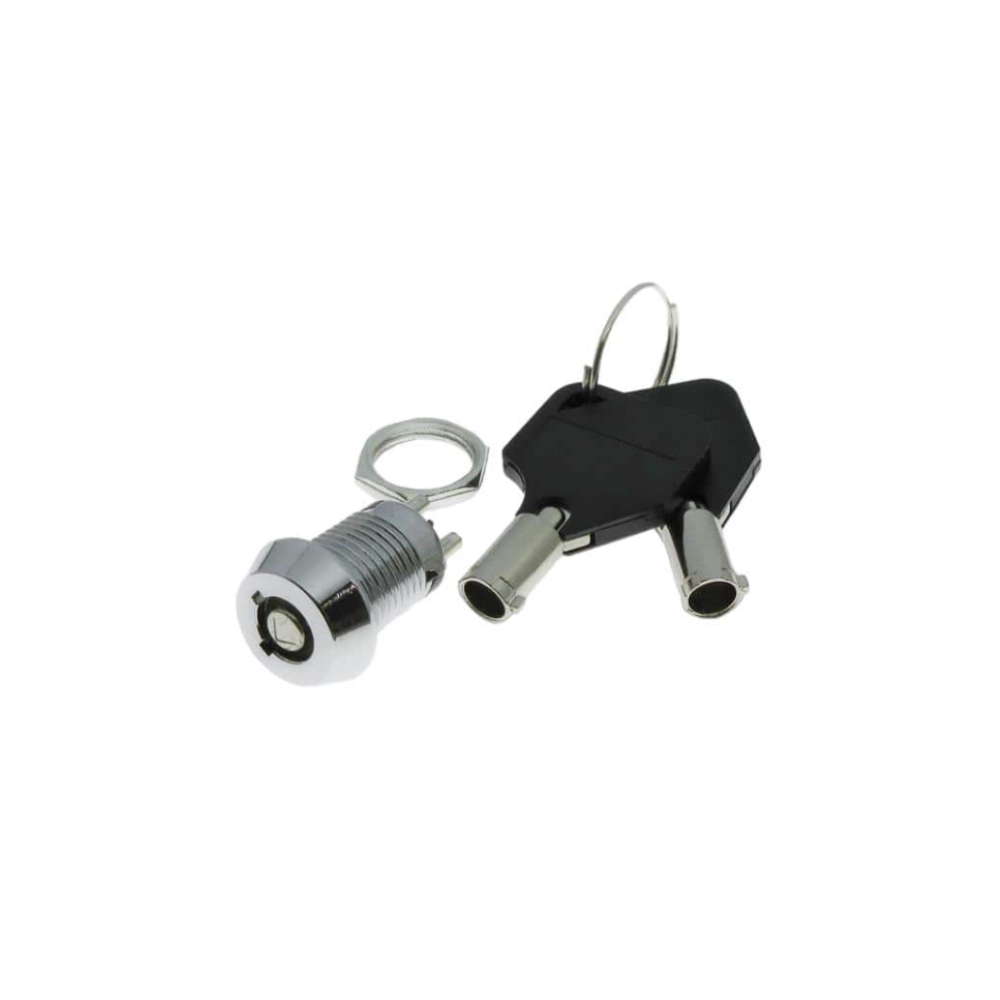

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: KEYLOCK SWITCH, 15MM PANEL MOUNT
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: SW
- Product Status: Active
- Features: -
- Mounting Type: Panel Mount
- Circuit: SPST
- Switch Function: Off-On
- Current Rating Amps: 1A (AC)
- Voltage Rating AC: 125 V
- Voltage Rating DC: -
- Actuator Type: Flat Key
- Termination Style: Solder, Quick Connect - 0.110" (2.8mm)
- Panel Cutout Dimensions: Circular - 11.80mm Dia
- Operating Temperature: -25°C ~ 85°C
- Contact Finish: -
- Number of Positions: 2
- Contact Material: -
- Contact Timing: Not Specified
- Key Removable Positions: All
- Angle of Throw: 90°
-
- Datasheet: BRVN-SW-R-K1-A
