SSHQ-212-Q-02-FT-LF
-
BRVN:BRVN-SSHQ-212-Q-02-FT-LF
-
MPN:SSHQ-212-Q-02-FT-LF
-
MFR:
-
Description:.079 Socket

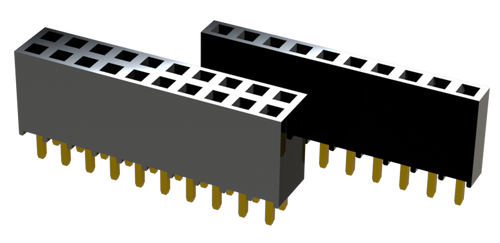

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 27 | $2.4 | $64.80 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: .079 Socket
- Manufacturer: Major League Electronics
- Length: 0 mm
- Series: SSHQ-2
- Product Status: Active
- Mounting Type: Through Hole
- Features: -
- Material Flammability Rating: -
- Voltage Rating: -
- Current Rating (Amps): 2A
- Number of Positions: 48
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.250" (6.35mm)
- Contact Length - Post: 0.090" (2.29mm)
- Operating Temperature: -40°C ~ 105°C
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
-
- Datasheet: BRVN-SSHQ-212-Q-02-FT-LF
