PCA-6MA-06-HD-3-G

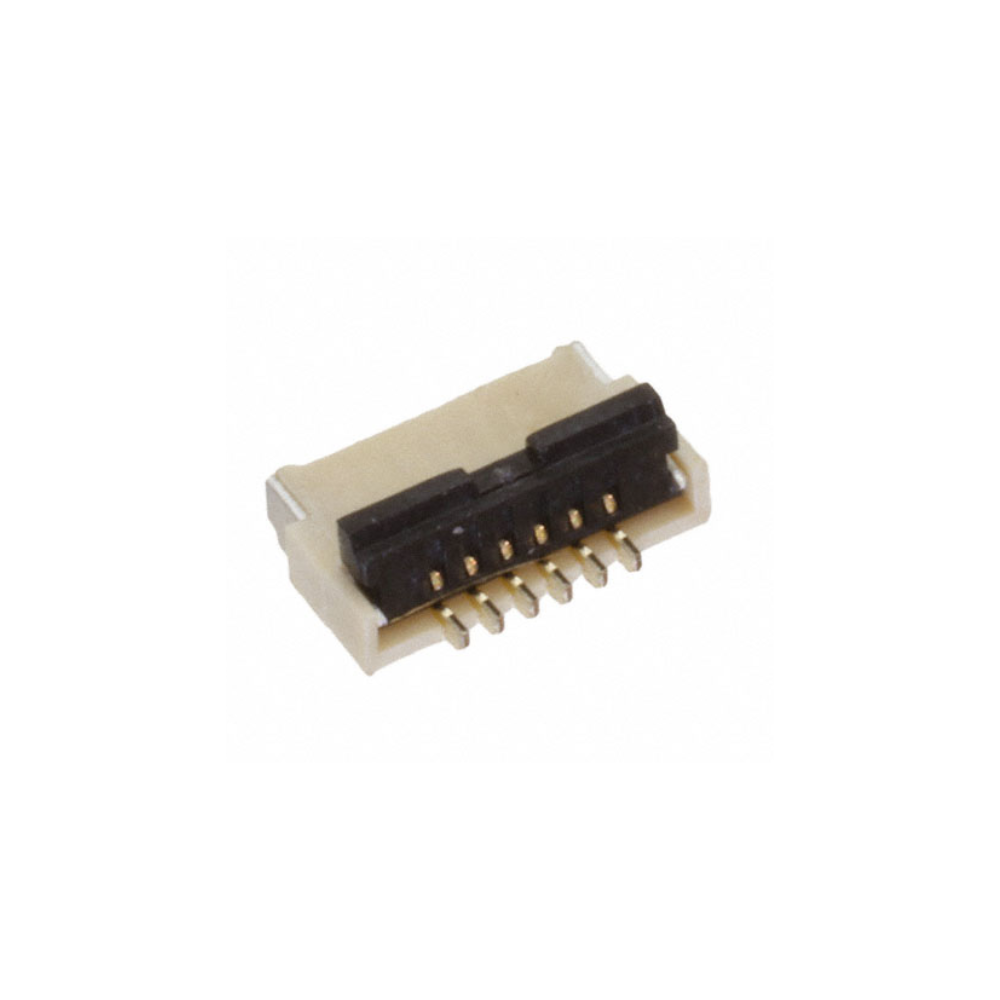

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: FPC/FFC CONNECTOR ZIF TYPE .5M
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: PCA
- Product Status: Obsolete
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Mounting Type: Surface Mount, Right Angle
- Operating Temperature: -25°C ~ 85°C
- Pitch: 0.020" (0.50mm)
- Contact Finish: Gold
- Termination: Solder
- Number of Positions: 6
- Voltage Rating: 30V
- Material Flammability Rating: UL94 V-0
- Height Above Board: 0.039" (1.00mm)
- Contact Material: Copper Alloy
- Housing Material: Liquid Crystal Polymer (LCP)
- Flat Flex Type: FFC, FPC
- Connector Contact Type: Contacts, Top and Bottom
- FFC FCB Thickness: 0.30mm
- Locking Feature: Flip Lock, Backlock
- Cable End Type: Tapered
- Actuator Material: Liquid Crystal Polymer (LCP)
-
- Datasheet: BRVN-PCA-6MA-06-HD-3-G
