PB-1B-DC-2-AIL
-
BRVN:BRVN-PB-1B-DC-2-AIL
-
MPN:PB-1B-DC-2-AIL
-
MFR:
-
Description:4P SPST OFF-(ON) LED - IP65 DC

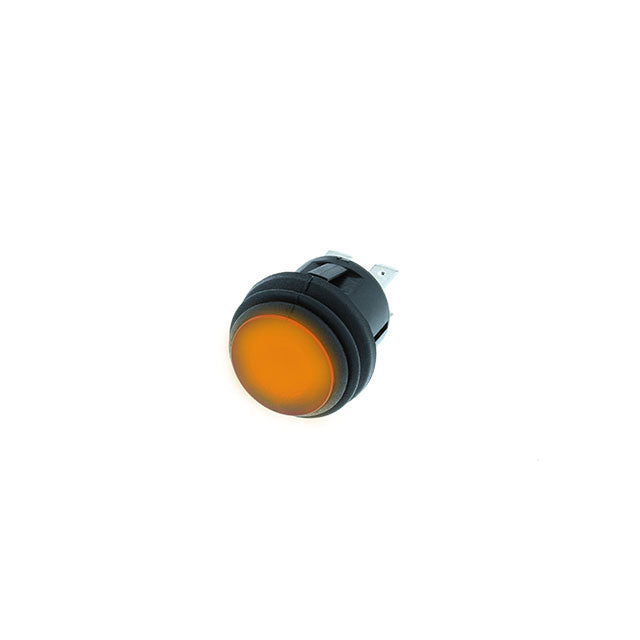

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: 4P SPST OFF-(ON) LED - IP65 DC
- Manufacturer: Switch Components
- Length: 0 mm
- Series: PB
- Product Status: Active
- Mounting Type: Panel Mount, Snap-In
- Circuit: SPST-NO
- Switch Function: Off-Mom
- Current Rating (Amps): 20A (DC)
- Voltage Rating - AC: -
- Voltage Rating - DC: 14 V
- Actuator Type: Round, Button
- Illumination Type, Color: LED, Amber
- Illumination Voltage (Nominal): 12 VDC
- Termination Style: Quick Connect - 0.187" (4.7mm)
- Panel Cutout Dimensions: Circular - 20.20mm Dia
- Ingress Protection: IP65 - Dust Tight, Water Resistant
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Type: Standard, Illuminated
- Color - Actuator/Cap: Amber
- Actuator Marking: No Marking
-
- Datasheet: BRVN-PB-1B-DC-2-AIL
