NEMA-5-1-B

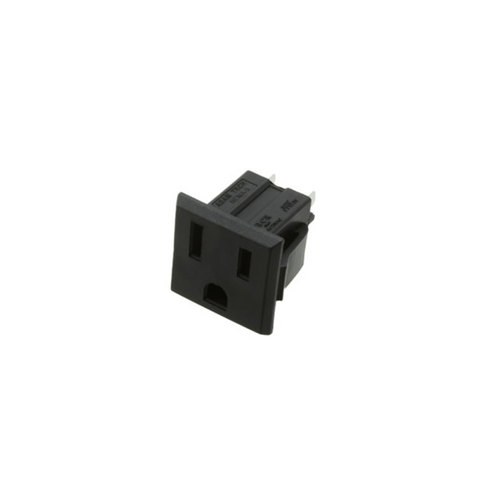

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: RECEPTACLE, PANEL SNAP, SOLDER H
- Manufacturer: Adam Tech
- Length: 0 mm
- Series: -
- Product Status: Active
- Features: -
- Mounting Type: Panel Mount, Snap-In
- Current Rating Amps: 15A
- Panel Cutout Dimensions: -
- Ingress Protection: -
- Connector Type: Receptacle, Female Sockets
- Termination: Quick Connect - 0.187" (4.7mm)
- Number of Positions: 3
- Voltage Rating: 125VAC
- Approval Agency: cURus
- Material Flammability Rating: UL94 V-0
- Connector Style: NEMA 5-15R
- Panel Thickness: -
-
- Datasheet: BRVN-NEMA-5-1-B
