LP4-10-1-G
-
BRVN:BRVN-LP4-10-1-G
-
MPN:LP4-10-1-G
-
MFR:
-
Description:LED INDICATOR 10MM -GREEN, SCREW

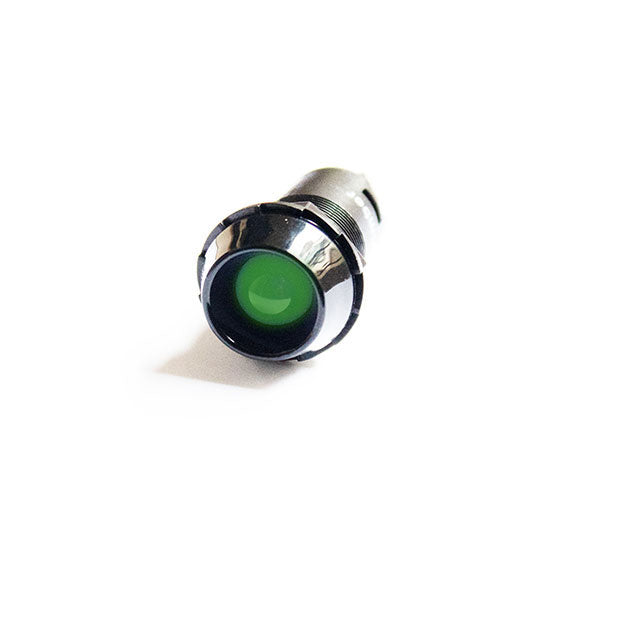

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED INDICATOR 10MM -GREEN, SCREW
- Manufacturer: Switch Components
- Length: 0 mm
- Series: LP4
- Product Status: Active
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: 0.64" (16.20mm)
- Ingress Protection: -
- Features: -
- Type: LED
- Lamp Color: Green
- Lens Color: White
- Lens Transparency: Diffused
- Ratings: Vf (Typ), If (Max)
- Voltage: 3.9V
- Current: 20mA
- Panel Cutout Shape: Round
- Lens Size: 10.00mm Dia
- Lens Style: Round with Protrusive Head
- Millicandela Rating: 700mcd
- Wavelength - Peak: -
- Viewing Angle: 120°
-
- Datasheet: BRVN-LP4-10-1-G
