LM2-8-1-A
-
BRVN:BRVN-LM2-8-1-A
-
MPN:LM2-8-1-A
-
MFR:
-
Description:LED INDICATOR 8MM - AMBER, SCREW

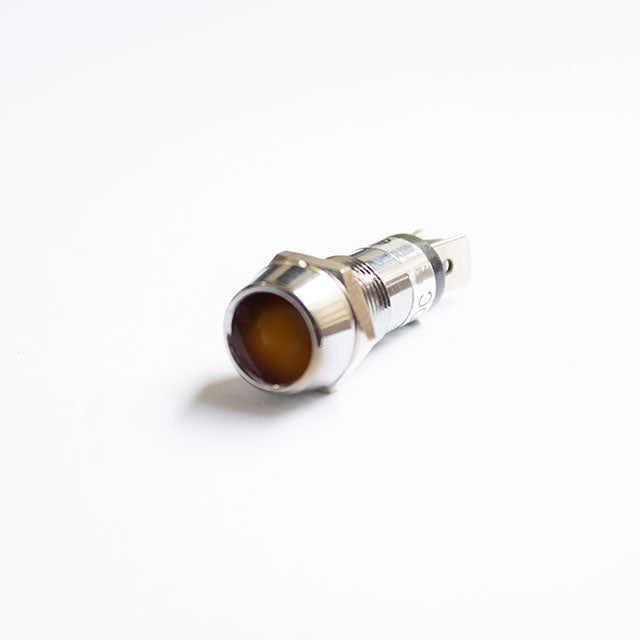

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED INDICATOR 8MM - AMBER, SCREW
- Manufacturer: Switch Components
- Length: 0 mm
- Series: LM2
- Product Status: Active
- Termination Style: Quick Connect - 0.250" (6.3mm)
- Panel Cutout Dimensions: 0.44" (11.20mm)
- Ingress Protection: -
- Features: -
- Type: LED
- Lamp Color: Yellow
- Lens Color: Yellow
- Lens Transparency: Diffused
- Ratings: Vf (Typ), If (Max)
- Voltage: 2.1V
- Current: 20mA
- Panel Cutout Shape: Round
- Lens Size: 8.00mm Dia
- Lens Style: Round with Protrusive Head
- Millicandela Rating: 50mcd
- Wavelength - Peak: -
- Viewing Angle: 30°
-
- Datasheet: BRVN-LM2-8-1-A
