LM1-5-W-A
-
BRVN:BRVN-LM1-5-W-A
-
MPN:LM1-5-W-A
-
MFR:
-

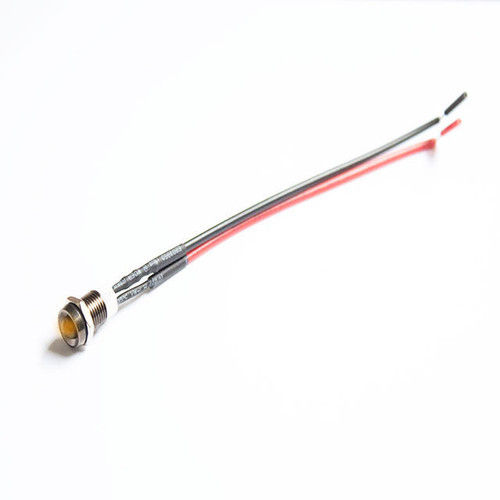

Description:LED INDICATOR 5MM - AMBER, SCREW
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: LED INDICATOR 5MM - AMBER, SCREW
- Manufacturer: Switch Components
- Length: 0 mm
- Series: LM1
- Product Status: Active
- Termination Style: Wire Leads - 4.9" (125.0mm)
- Panel Cutout Dimensions: 0.315" (8.00mm)
- Ingress Protection: IP67
- Features: -
- Type: LED
- Lamp Color: Yellow
- Lens Color: Colorless
- Lens Transparency: Clear
- Ratings: Vf (Typ), If (Max)
- Voltage: 2.1V
- Current: 20mA
- Panel Cutout Shape: Round
- Lens Size: 5.00mm Dia
- Lens Style: Round with Domed Top
- Millicandela Rating: 6000mcd
- Wavelength - Peak: -
- Viewing Angle: 20°
-
- Datasheet: BRVN-LM1-5-W-A
