HGN-369-3
-
BRVN:BRVN-HGN-369-3
-
MPN:HGN-369-3
-
MFR:
-
Description:PWR ENT MOD RCP IEC 320-C14 PNL

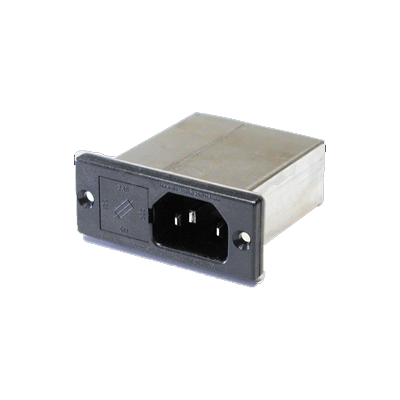

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: PWR ENT MOD RCP IEC 320-C14 PNL
- Manufacturer: Power Dynamics
- Length: 0 mm
- Series: HGN-369
- Product Status: Active
- Connector Type: Receptacle, Male Blades - Module
- Number of Positions: 3
- Mounting Type: Panel Mount, Flange
- Termination: Quick Connect - 0.110" (2.8mm)
- Features: Voltage Selector
- Connector Style: IEC 320-C14
- Panel Cutout Dimensions: Rectangular - 46.50mm x 21.00mm
- Panel Thickness: -
- Material Flammability Rating: -
- Ingress Protection: -
- Approval Agency: CE, CSA, UL, VDE
- Current Rating - Appliance Inlet: -
- Voltage Rating - Appliance Inlet: -
- Filter Type: Filtered (EMI, RFI) - Commercial
- Current Rating - Filter: 3A
- Switch Features: -
- Current Rating - Circuit Breaker: -
- Accomodates a Fuse: Yes (Fuse Not Included)
- Fuse Holder, Drawer: Fuse Holder, Twin Fused
-
- Datasheet: BRVN-HGN-369-3
