DPH-28708-C
-
BRVN:BRVN-DPH-28708-C
-
MPN:DPH-28708-C
-
MFR:
-

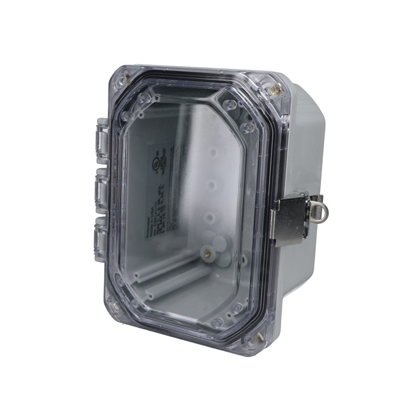

Description:CLEAR HINGED COVER IP68 NEMA 6P
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Packaging Type: Bag
| Qty | Unit Price | Ext. Price |
|---|---|---|
| 1 | $67.75 | $67.75 |
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CLEAR HINGED COVER IP68 NEMA 6P
- Manufacturer: Bud Industries
- Length: 0 mm
- Series: DPH
- Product Status: Active
- Features: -
- Size Dimension: 9.040" L x 7.040" W (229.62mm x 178.82mm)
- Material: Plastic, Polycarbonate
- Color: Gray, Clear Cover/Door
- Thickness: 0.150" (3.81mm)
- Height: 5.220" (132.59mm)
- Container Type: Enclosure
- Area L x W: 63.6in² (410cm²)
- Design: Hinged Door, Cover Included
- Material Flammability Rating: UL94 5A
- Ratings: IP68, NEMA 1, 2, 3R, 4, 4X, 6, 6P, 12, 13
-
- Datasheet: BRVN-DPH-28708-C
-
- RoHS: ROHS Compliant
- HTSUS: 3926.90.99
