CT12E-06T204-1
-
BRVN:BRVN-CT12E-06T204-1
-
MPN:CT12E-06T204-1
-
MFR:
-
Description:MAGNETIC XDCR 4-6V TH

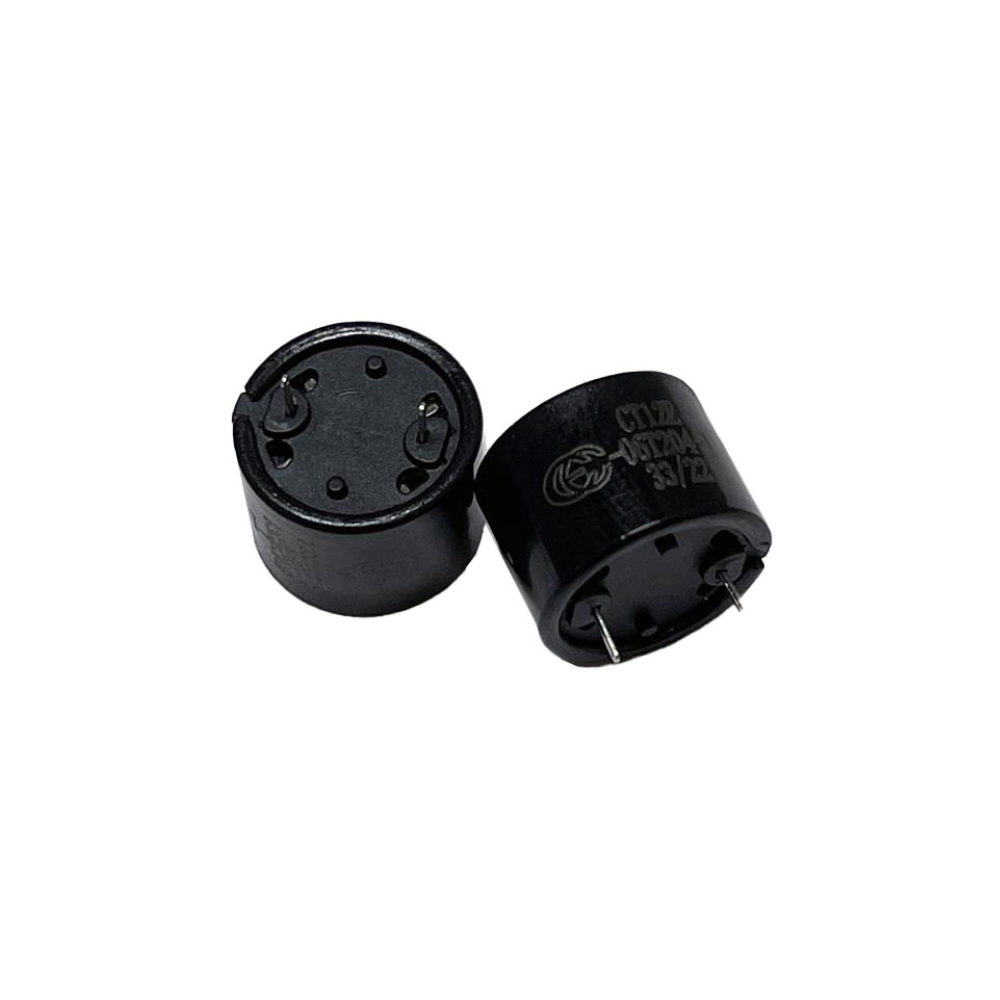

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: MAGNETIC XDCR 4-6V TH
- Unit of Measure: EA
- Manufacturer: Challenge Electronics
- Length: 0 mm
- Series: -
- Product Status: Active
- Technology: Magnetic
- Port Location: Top
- Ingress Protection: -
- Ratings: -
- Termination: PC Pins
- Size Dimension: 0.472" Dia (12.00mm)
- Height Seated Max: 0.374" (9.50mm)
- Frequency: 2.048kHz
- Operating Temperature: -30°C ~ 70°C
- Mounting Type: Through Hole
- Driver Circuitry: Transducer, Externally Driven
- Input Type: Zero-Peak Signal
- Voltage Rated: 5 V
- Voltage Range: 4 ~ 6V
- Operating Mode: -
- Duration: -
- Sound Pressure Level SPL: 85dB @ 5V, 10cm
- Current Supply: 50mA
- Approval Agency: -
-
- Datasheet: BRVN-CT12E-06T204-1
