44R02-2131-150
-
BRVN:BRVN-44R02-2131-150
-
MPN:44R02-2131-150
-
MFR:
-
Description:PWR ENT RCPT IEC 320-C13 PNL QC

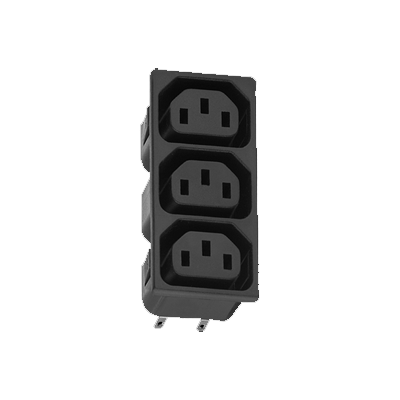

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: PWR ENT RCPT IEC 320-C13 PNL QC
- Manufacturer: Power Dynamics
- Length: 0 mm
- Series: -
- Product Status: Active
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 3 per connection (2)
- Mounting Type: Panel Mount, Snap-In
- Termination: Quick Connect - 0.189" (4.8mm)
- Features: -
- Connector Style: IEC 320-C13
- Panel Cutout Dimensions: Rectangular - 32.50mm x 48.30mm
- Panel Thickness: 0.059" (1.50mm)
- Material Flammability Rating: UL94 V-0
- Ingress Protection: -
- Approval Agency: cULus, VDE
- Current Rating - Appliance Inlet: -
- Voltage Rating - Appliance Inlet: -
- Filter Type: Unfiltered - Commercial
- Current Rating - Filter: -
- Switch Features: -
- Current Rating - Circuit Breaker: -
- Accomodates a Fuse: No
- Fuse Holder, Drawer: -
