298MG1800
-
BRVN:BRVN-298MG1800
-
MPN:298MG1800
-
MFR:
-
Description:Isolation transfortmer, medical grade, 1800VA, 120 VAC to 240 VAC, MG Series

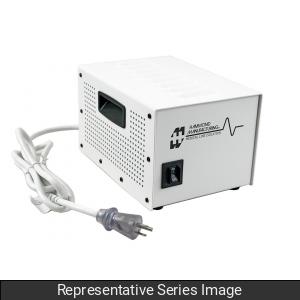

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: Isolation transfortmer, medical grade, 1800VA, 120 VAC to 240 VAC, MG Series
- Manufacturer: Hammond Manufacturing
- Length: 0 mm
- Series: 178-240-89-98MG
- Standards: csa, culus, taa-compliant
- Power Rating (VA): 1800
- Leakage Current: < 100 uA
- Input Voltage (AC): 120 VAC
- Input Current (Amps): 15.63 A
- Full Load Efficiency: 96% (min)
- Output Voltage (VAC): 240 VAC
- Output Current (Amps): 7.50 A
- Input Plug NEMA Type: 5-20P
- Cord Style / Length: 12/3 SJTW/ 6ft.
- Output Receptacle: Duplex 6-15R
- Number of Duplex Receptacles: 3
-
- RoHS: ROHS Compliant
- ECCN: EAR99
- HTSUS: 8504.32.0000
- Country_of_Origin: CA
- USMCA_Compliant: Yes
- REACH_Compliant: Yes
- UPC: 623980612072
- UNSPSC: 39121017
- GTIN-14: 00623980513379
