1532H
-
BRVN:BRVN-1532H
-
MPN:1532H
-
MFR:
-
Description:CHOKE 100 UH 400 MA

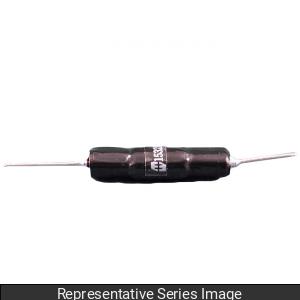

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Import Tariff May Apply
Import Tariff may apply to this part if shipping to the United States.
-
- Description: CHOKE 100 UH 400 MA
- Manufacturer: Hammond Manufacturing
- Length: 0 mm
- Series: 1531-1535
- Inductance L (uH): 100 uH
- Inductance Tolerance: +/- 10%
- Q Min.: 107
- Test Frequency mHz: 0.79 MHz
- Self Resonant Min. Frequency: 12
- Max. D.C. Resistor (Ohms): 3
- Core Length: 0.875
- Max. D.C. Current (mA.): 400
- Coil Diameter Max.: 0.29
- Core Material: Iron
- Coil Type: Single
-
- RoHS: ROHS Compliant
- ECCN: EAR99
- HTSUS: 8504.50.8000
- Country_of_Origin: CN
- USMCA_Compliant: No
- REACH_Compliant: Yes
- UPC: 623980612072
- UNSPSC: 39121017
- GTIN-14: 00623980294209
